คำตอบที่ 3
คุณภาพผ่านการรับรองมาตรฐานCE,CB,RoSH,REACH และมีวางจำหน่ายในหลายประเทศ
Product Description

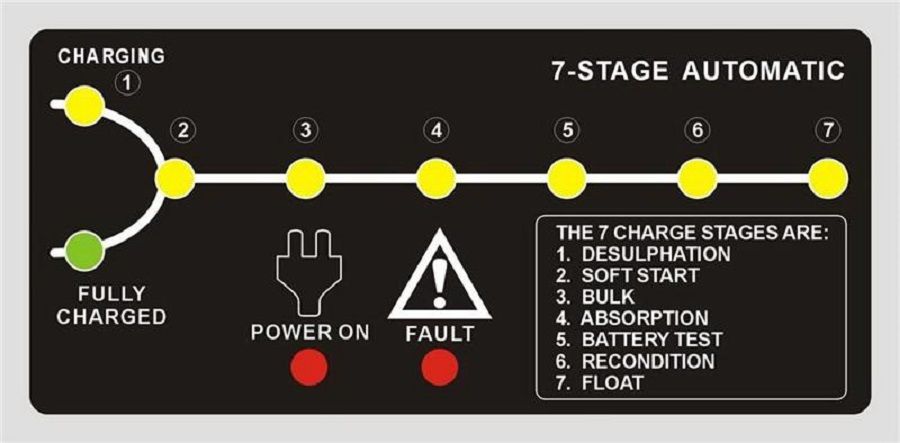

This is a fully automatic battery charger with 7 charge stages.
Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
7-stage charging is a very comprehensive and accurate chargng process that gives your battery longer life and better performance compared to using traditional chargers.
7-stage chargers are suitable for most battery types including Calcium, Gel and AGM batteries. They may also help restore drained and sulphated batteries.

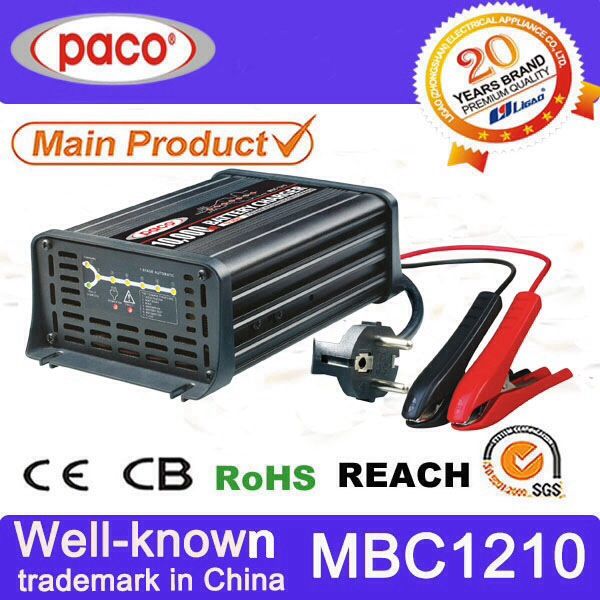

SPECIFICATION FOR MBC 1210
Type 7-stage automatic
Input Voltage 220-240V~,50Hz 110V~,60Hz
Input Power 307W
Output Voltage/Current 12VDC, 10,000mA
Minimum Start Voltage 2V
Current Fuse Rating 250VAC,T3.15A

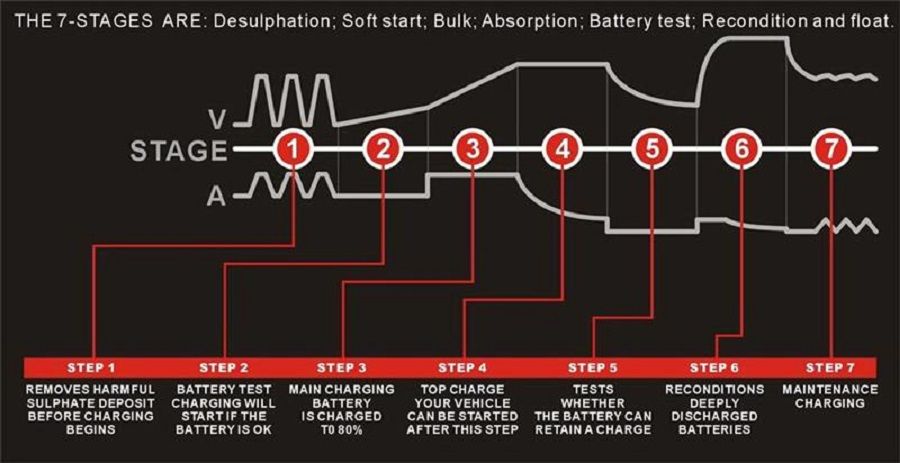

CHARGE CONTROL
Desulphation Pulse charge up to 11V
Soft Start Half the rated set current up to 12V
Bulk 10,000mA(up tp 14.4V)
Absorption Constant voltage until current drops to 1.5A
Battery Test Monitors voltage for 90 seconds
Recondition Constant current(1.5A) up to 16V for 4 hours
Float 13.8V also with pulse feature
Efficiency App. 85%
Short Protect Short Circuit Protection
Polarity Reverse Polarity Reverse Circuit Protection
Non battery link Protection Circuit Protection
Link battery type mistake Circuit Protection
Over battery type mistake Circuit Protection
Over Voltage Protection 17.5V
Thermal Protect 65°C±5°C
Cooling Fan Automatic temperature controlled
BATTERY RANGE
Deep Cycle 70-200Ah
Types of Batteries Most types of lead acid batteries including Calcium,GEL and AGM
Dimension(L×M×H) 190×115×62mm
Weight 1.1Kg
