คำตอบที่ 15
Mitsubishi does not seem to use seperate designations for different size turbine wheels, other than the TD04, TD04H, TE04, TD05H, etc., designation. The "6cm2" in the model name is similar to the A/R ratio used by other manufacturers. The "A" in an A/R ratio is the cross-sectional area of the smallest intake passage in the turbine housing before the passage spreads around the circumferential volute that leads to the turbine wheel. The "R" in the ratio is the distance from the center of the "A" to the center of the turbine wheel. The MHI "6cm2" designation is just the "A" in the A/R ratio, that is, it is just the cross-sectional area. Like A/R, the smaller the size of the "cm2" number, the faster the exhaust gases will discharge onto the turbine wheel, and so the faster the spool up will be (less "lag"). The size of the "cm2" number or the A/R ratio also determines the amount of exhaust gas backpressure and, thus, reversion into the combustion chamber. A larger "cm2" number (or larger A/R) means less backpressure at high exhaust flow. Extreme Turbo says that the TD05H-7cm2 housing is equivalent to a 0.50 A/R. The Rocky Mountain DSM turbo guide presents the following conversion between Mitsubishi's "cm2" number and the standard A/R.
6 cm2 = 0.41 A/R
7 cm2 = 0.49 A/R
8 cm2 = 0.57 A/R
9 cm2 = 0.65 A/R
10 cm2 = 0.73 A/R
11 cm2 = 0.81 A/R
12 cm2 = 0.89 A/R
ข้อมูลเบอร์ โข่งหลังมิตซูครับ เทียบเป็นเบอร์ A/R ครับ ตัดมาจากเว็บ www.stealth316.com
.......................
++++++++++++
s spata
โทร 0824432553
.................

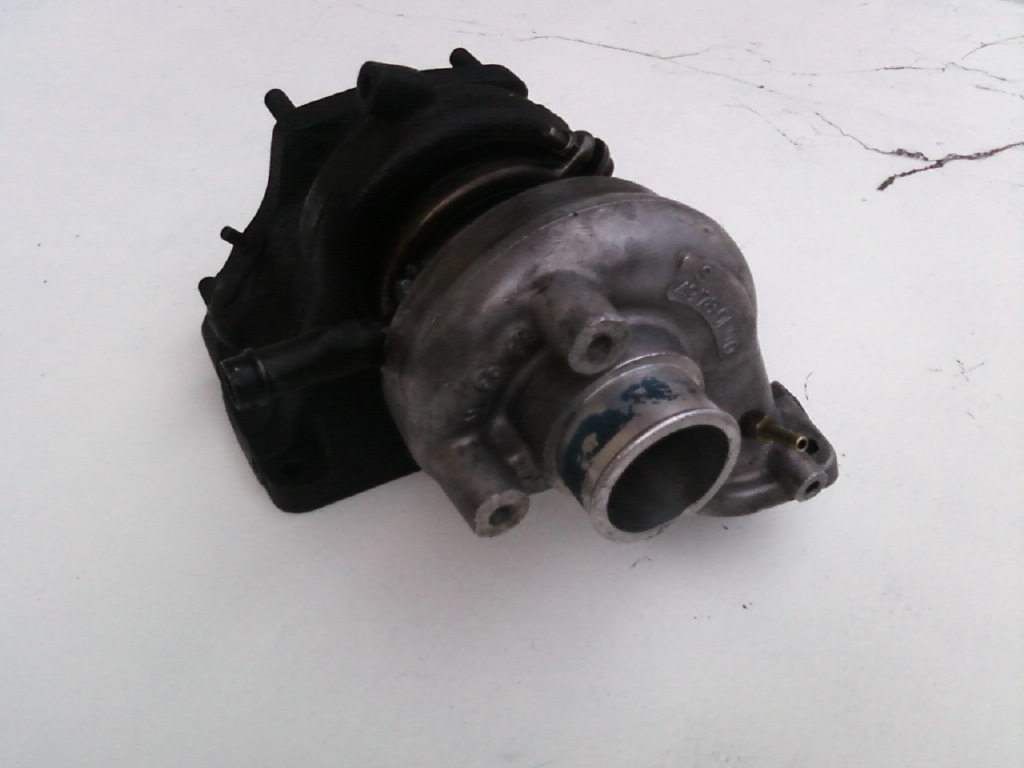

เทอร์โบ td 04 ใบซ้อน+เขาไอเสียพร้อมหน้าแปลนใส่เวสเกตได้เลย 3000 บาทไทย

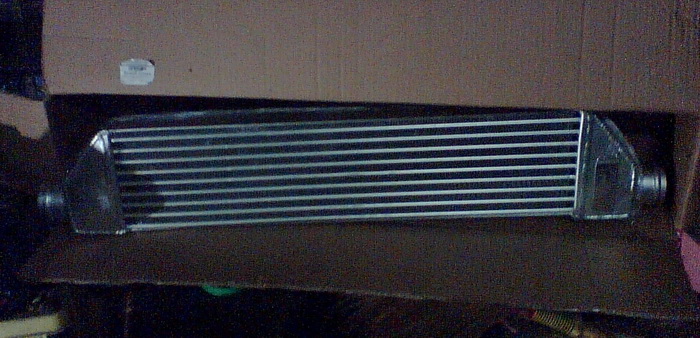

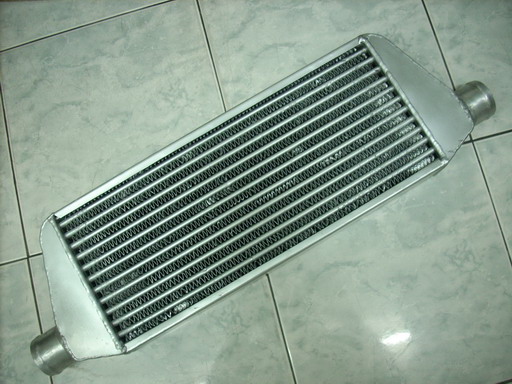

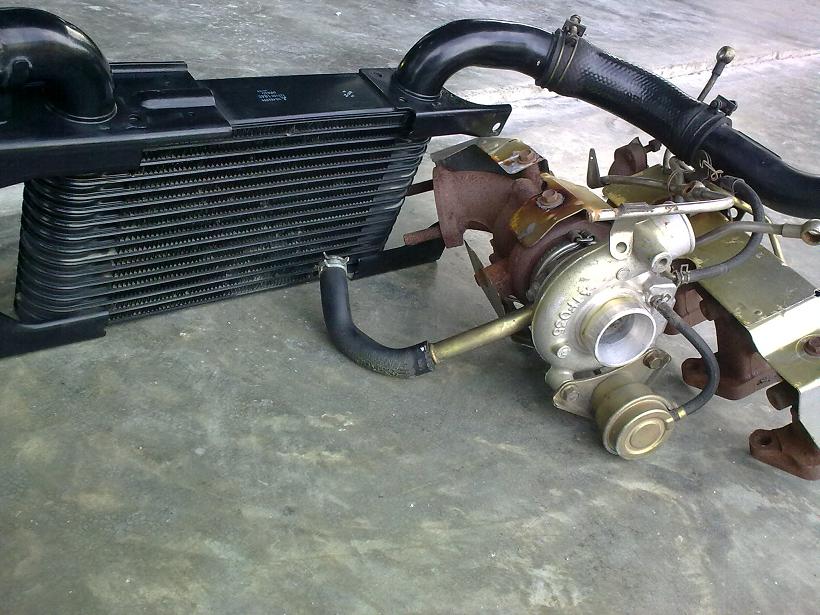

หรือเอาหมดยกชุด เทอร์โบ 04ใบซ้อน+เขาไอเสีย+เวสเกตแยก+อินเตอร์บนพร้อมท่อยาง+ท่อเลส+กรองอากาศพร้อมท่อเลส 10000 บาทไทย
