ปาเจโร่โชกุลติดแก๊สแทนถังนั้มัน

จาก เล็ก
พุธที่ , 8/2/2549
เวลา : 17:43

อ่าน = 2392
125.24.23.236

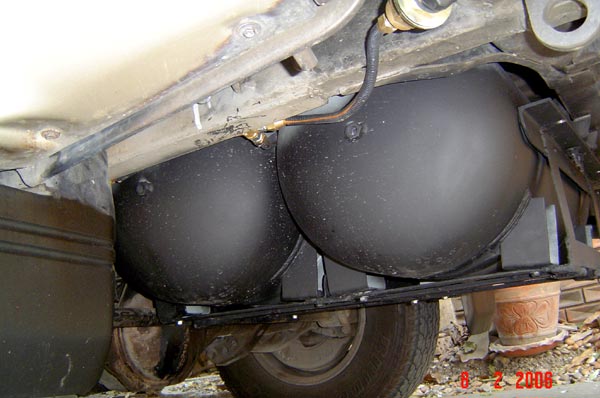

       ผมนำรูปการติดถังแก๊สขนาด 58 ลิตรจำนวนสองถังติดแทนที่ถังน้ำมัน โดยเอาถังน้ำมันออก ส่วนถังน้ำมันให้เขาตีใหม่ขนาดประมาณ 35 ลิตร ระบบที่ติดเป็นหัวฉีด ราคาทั้งหมดประมาณ 68,000 แต่เดิมเคยเติมน้ำมันราคา 2,200 บาท ลดลงเหลือประมาณ 800 บาท




เครื่องมือในการใช้งาน website =>> สมัครสมาชิก | Login | Logout | เปลี่ยนไอคอนส่วนตัว | เกี่ยวกับเรา | ติดต่อโฆษณา         View stat by Truehits.net





คำตอบที่ 1
       มองจากข้างหลังจะเห็นเหล็กยึดขาตั้งถังแก๊ส ซึ่งตอนนี้ยังไม่ติดการ์ดปิดถังแก๊สลงไป กำลังดูว่าทำอย่างไรถึงสวย ตอนนี้คิดว่า จะเอาเหล็กปิดช่องสี่เหลี่ยมและปิดใต้ท้องก็พอ






จาก เล็ก  125.24.23.236  พุธ, 8/2/2549 เวลา : 17:47


คำตอบที่ 2
       ดูกันใกล้ๆ อีกนิด





จาก เล็ก  125.24.23.236  พุธ, 8/2/2549 เวลา : 17:48


คำตอบที่ 3

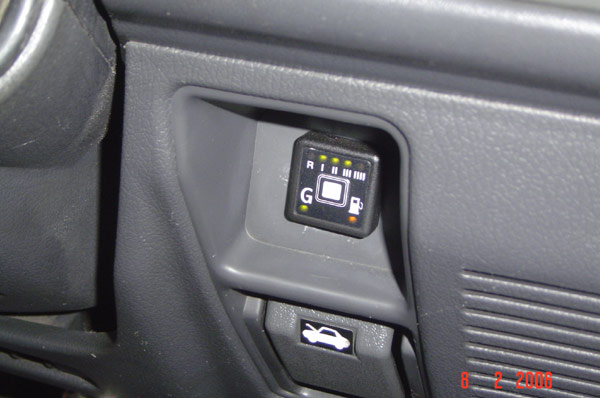

       สวิสในรถที่ใช้สำหรับดูปริมาณแก๊สที่เหลือ จะเห็นว่ามีไฟติดอยู่สามดวง (ปกติจะมีสี่ดวง) แสดงว่าใช้แก๊สหมดไป 1/4 ของแก๊ส ปุ่มขาว ๆ ตรงกลางใช้กดเปลี่ยนโหมดเป็นน้ำมันหรือแก๊ส ใช้ได้ในระหว่างวิ่งก็ได้ ถ้ามีไฟติดสีส้มทางขาวมือแสดงว่ากำลังใช้น้ำมันอยู่

ระบบนี้จะสตาร์สด้วยน้ำมันก่อน แล้วเมื่ออุณหภูมิถึงจุดหนึ่ง และรอบเครื่อง เร่งเกิน 1,600 รอบ แล้วจะเปลี่ยนโหมดไปเป็นแก๊สโดยอัตโนมัติ



จาก เล็ก  125.24.23.236  พุธ, 8/2/2549 เวลา : 17:53


คำตอบที่ 4
       ดูรูปครับ





จาก เล็ก  125.24.23.236  พุธ, 8/2/2549 เวลา : 17:54


คำตอบที่ 5
       ระยะที่วิ่งได้เมื่อแก๊สหมดประมาณ 1/4 ของแก๊ส (ทั้งหมดประมาณ 116 ลิตร) ก็ประมาณใช้แก๊สไป 30 ลิตร ซึ่งมีการวิ่งทั้งในเมืองและชานเมืองด้วย สรุปก็กินแก๊สใกล้เคียงกันน้ำมันครับ อัตราการกินจะรายงานอีกครั้งหนึ่งเพื่อให้ใกล้เคียงความเป็นจริง





จาก เล็ก  125.24.23.236  พุธ, 8/2/2549 เวลา : 17:57


คำตอบที่ 6

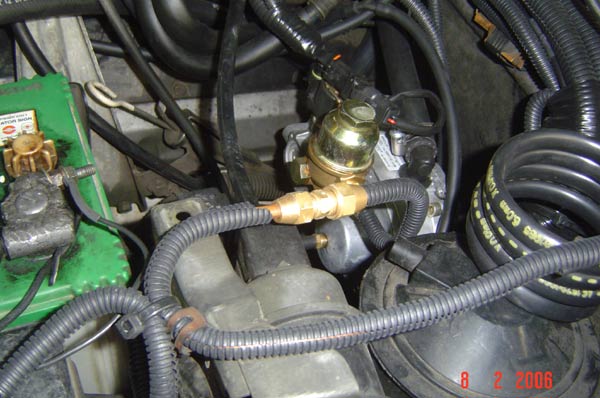

       นี่หม้อต้มครับ





จาก เล็ก  125.24.23.236  พุธ, 8/2/2549 เวลา : 17:58


คำตอบที่ 7

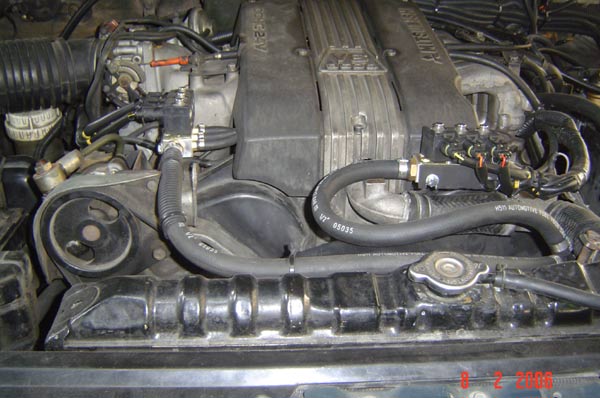

       หัวฉีดจำนวนหกหัว ทางซ้ายสามหัว ทางขวาสามหัว





จาก เล็ก  125.24.23.236  พุธ, 8/2/2549 เวลา : 18:00


คำตอบที่ 8
       นี่รถผมครับ ยังไม่เคยลงรูปเลย ก็เลยเอามาให้ชม เป็นปี 94 V6 3500 cc ซื้อมาได้ประมาณหนึ่งปี แต่เพิ่งจ่ายเงินหมดไปหยก ๆ กำลังจะโอน





จาก เล็ก  125.24.23.236  พุธ, 8/2/2549 เวลา : 18:02


คำตอบที่ 9
       ชื่อร้านที่ทำ ซึ่งผมไม่ได้มีส่วนได้เสียอะไร ใครสนใจโทรไปถามรายละเอียดได้

CNGauto Co., Ltd
Tel: 02-978-2058, 04-025-5895 อยู่ปทุมธานี



จาก เล็ก  125.24.23.236  พุธ, 8/2/2549 เวลา : 18:04


คำตอบที่ 10




จาก pajeromans  61.91.71.225  พุธ, 8/2/2549 เวลา : 19:38


คำตอบที่ 11




จาก PCT  58.9.25.26  พุธ, 8/2/2549 เวลา : 19:47


คำตอบที่ 12
       แน่มากเลยครับ คุณเล็ก ถึงกับถอดถังเก่าทิ้งเลย
จะเรียกว่าทุบหม้อข้าวเลยหรือเปล่าครับนี่

แต่ผมก็ว่าดีนะครับ เพราะถ้าใช้ถังน้ำมันเก่า ถังแก็สก็หนีไม่พ้นต้อง
ไปอยู่ในห้องโดยสาร ซึ่งเกะกะและไม่ปลอดภัย

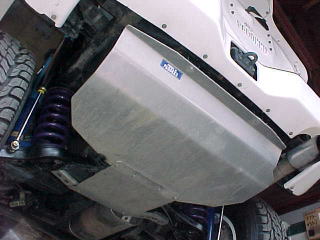

เยี่ยมแล้วครับ ออกแบบแผ่นอลูมิเนียมหนา ๆ แบบกันแคร้งหน้า
มาคลุมซะให้มิด ๆ ก็สวยได้เหมือนกันครับ...

อัตราการกินแก็ส มันก็ต้องเท่านี้แหละครับ
เพียงแต่ราคาแก็สมันต่อลิตรถูกกว่าน้ำมัน ก็เลยประหยัดเงินขึ้น



yakusa จาก Sak YaKuSa   พุธ, 8/2/2549 เวลา : 23:32


คำตอบที่ 13
       ขอดูรูปถังที่ตีใหม่หน่อยครับพี่เล็ก



จาก หนุ่ม  57.73.7.145  พฤหัสบดี, 9/2/2549 เวลา : 08:47


คำตอบที่ 14
       เดี๊ยวจะนำรูปถังน้ำมันใหม่มาลงให้

ตอนนี้มีปัญหาคือว่าจะออกแบบการ์ดปิดถังน้ำมันให้สวยได้อย่างไร ใดรมีไอเดียช่วยบอกด้วยก็แล้วกัน



จาก เล็ก  125.24.23.236  พฤหัสบดี, 9/2/2549 เวลา : 11:03


คำตอบที่ 15






จาก PCT  61.47.96.38  พฤหัสบดี, 9/2/2549 เวลา : 13:16


คำตอบที่ 16






จาก PCT  61.47.96.38  พฤหัสบดี, 9/2/2549 เวลา : 13:17


คำตอบที่ 17






จาก PCT  61.47.96.38  พฤหัสบดี, 9/2/2549 เวลา : 13:18


คำตอบที่ 18
       สวยมากครับ ของคุณมากครับ



จาก เล็ก  125.24.23.236  พฤหัสบดี, 9/2/2549 เวลา : 15:38


คำตอบที่ 19
       ไปเจอข้อมูลอัตราการใช้แก๊สสำหรับ V6 3000 ครับ

Hello people,

Converted my mg 3.0l paj a month ago and I am not looking back. The engine is a little worn and tired but its doing fine on the gas. I was prepared for 20L/100km consumption on gas but I have been surprised. I am meticulous with my fuel calculations: here are my results so far (based on each fill up) :

1. 16.53L/100km - city 90% --------- 6.04 กม./ลิตร

2. 17L/100km - City 90%----------5.88 กม./ลิตร

3. 19L/100km - 50/50 mixed driving (found out oxy sensor was NOT working....ordered universal one from ebay for $40) --------- 5.26กม./ลิตร

4. 16.9L/100km city 70% + tune up with new sensor--------5.91กม./ลิตร

5. 18.93/100km Towing my 4.6m runabout -----5.28กม./ลิตร

6. 16.72/100km 20%city/80% highway (slightly heavier foot this week)--------- 5.98กม./ลิตร

7. 90% highway - 15.21L/100km (at highway speeds)-----------6.57 กม./ลิตร

8. 90% highway - 14.8L/100km (a little bit of free gearing down hills, taking it easy but still at highway speeds)----------6.76กม./ลิตร

9. 16.7L/100km - 60% city (average style)------5.99 กม./ลิตร

***I have been filling up after doing about 150km-280km per tank...haven't run the tank dry...doing this to get many readings)

I am generally a smooth driver, no fast starts at lights..foot rarely ever past halfway..even during acceleration. i keep revs below 3000rpm...don't drag gears out. I do drive in a fuel saving style. So I guess these results are ok. i am happy with them considering that this is an old motor - 250k. plus its valve guides aren't in the best shape.

Since going on LPG I noticed the following:

1. IMMEDIATE reduction in engine noise...I mean IMMEDIATE..its wierd...sounds SO quiet at idle.

2. engine sounds SO much more smoother

3. oil is CLEAN..porcelin of plugs are black and CLEAN.

4. Slightly less power....not substantial...easy to get used to. TOwed my boat with ease..crusied at 100km hr easily in 5th gear...boat package with mates weighed roughly about 1200kg...I used petrol upon acceleration on ramp merging with Hwy...but didin't really have to...just wanted to get there a little faster.

I bit the bullet with this one and just went for the conversion ($2400)..stuff all this BS fear talk. I am mechanical by nature and if it were to go sorry..I'd reco the engine myself. However I did ask a few things for the conversion. I wanted a computerised system with a learning ability that could go to close loop. I ended up getting an AEB processor which uses a stepper motor to control LPG delivery, and recieves input form the oxy sensor as a baseline. THUS air fuel ratios are predetermined for a given load point. Couple that with the detonation supressing ability of higer octane...it makes fora pretty safe setup. The unit starts on petrol for 2 secs before switching to gas...the the computer does the rest. This processor has a self learnign capability much like OEM computers, its pretty efficient. The car doesn't even ping under heavy load...I am talking about 5th gear going at a measley 60kmhr foot flat to the floor up a steep hill to induce load (I only did this to test it)......NO PINGING! ....if it were petrol ..it would be pinging like mad. It is also mechanically set to run pretty lean during idle or under 1000rpm to safe fuel. I also customised my tank to be places on abracket over the left wheel archs in the back..saves lots of boot room.

Older LPG systems are primitive ...beig carbies and all...these Processor controlled units...whe programmed well...are excellent. So far I am happy. I know many of you are tak\lking about valve seat recession and all that. But there are plenty of 3.0pajs thatare still chugging with no probs. There are so many theories about this but few examples. I have asked many many mechaics about this and ones that I trust told me not to convert 2.4l hiluxes as they do have a valve recession prob...but these old paj 3.0l are ok...just do some precautionary things like have a decent cooling system....these motors run hot, so clean out your radiator professionally and make sure your thermostat is working properly. Ther ehas been NO increase in running temp since the change to LPG...even under load with boat. Never went past a third of the gauge reading. I am in QLD by the way and it was a reasonably hot day.

There you have it people. My account so far. I am happy about it. At the moment with current LPG prices its like driving a vt commodore when petrol used to be 80cents...thats what I worked it out to be like for those who don't undersatnd the maths. AND its better than say a hyundai excel running with current petrol prices!




ปลาทาโร จาก Ball  58.10.88.211  พฤหัสบดี, 9/2/2549 เวลา : 18:30


คำตอบที่ 20
       ของคุณเล็กสุดยอดแล้วล่ะ ของผมติดตั้งมา 1 ปีแล้ว ขนาดถัง58 ลิตร วิ่งได้ประมาณ 330 กม. เฉลี่ยประมาณ 5.7 กม/ลิตร เครื่อง v 6 3000 cc



จาก มานิตย์  202.5.82.77  จันทร์, 13/2/2549 เวลา : 12:36


คำตอบที่ 21
       ของผมตอนนี้วิ่งจนเกือบหมดถัง วิ่งได้ 407 กม ซึ่งเป็นการวิ่งในเมืองและบางครั้งวิ่งชานเมืองเมือง ถ้าวิ่งในเมืองก็ติดมาก ๆ ใช้ส่วนใหญ่เกี่ยร 1-2 และเติมแก๊สเข้าไปใหม่ อัดได้ 92.8 ลิตร ซึ่งถ้าวิ่งในเมืองมาก ๆ จะกินแก๊สมาก ซึ่งก็ปกติถ้าอัตราการกินแก๊สมากกว่าน้ำมันประมาณ 10-15% ตามที่ทางร้านบอกไว้

ต่อไปจะทดสอบการใช้นอกเมืองคาดว่าประมาณปลายเดือนจะวิ่งไปจันทบุรี แล้วจะรายงานให้ทราบอีกทีครับ



จาก เล็ก  125.24.9.35  อังคาร, 14/2/2549 เวลา : 16:20


คำตอบที่ 22
       http://www.gasthai.com/boardsale/Question.asp?ID=72

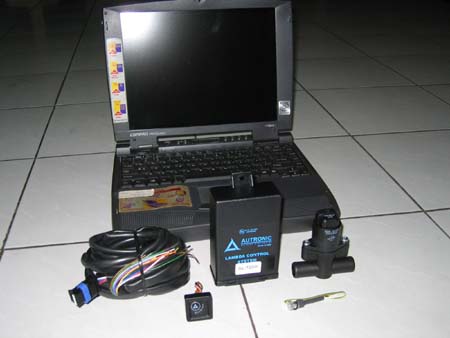

LAMDA ECU CONTROL ชุดนี้ให้ประโยชน์หลายอย่าง

1. ประหยัด กว่าเดิม หลังติดตั้ง 5-10% ทดสอบใน

JEEP GRAND 4 LITE มากว่าสองเดือน ก่อนจำหน่าย

2. ป้องกัน BACK FIRE ได้ 100 %

3.มีชุดหลอก O2 ทำให้ไฟเอ็นจิ้นไม่โชว์



รถลูกค้าพวก camry / HONDA มาอัพเกรด LAMDA

ชุดนี้ไฟไม่โชว์อีกเลย ครับ !

4.สภาพเครื่องรอบนิ่ง วิ่งใกล้เคียงน้ำมันมาก

5.ไม่ต้อง ปรับ จูนอีกเลย เซ็ทด้วย COM. ครั้งเดียว

เหมือนระบบหัวฉีด ใช้ยาวเลยครับ ไม่พอใจจุดไหนมา

เปลี่ยนได้หมด

BAND AUTO GAS - ITALIA รับประกันคุณภาพครับ








จาก ช่างเล็ก GAS -POWER  58.8.249.231  อังคาร, 14/2/2549 เวลา : 23:41


คำตอบที่ 23
       ยอดเลยพี่เล็ก ว่างๆไปเที่ยวกันนะ



จาก Jeep@ING  203.155.95.73  พุธ, 15/2/2549 เวลา : 10:13


คำตอบที่ 24
       ได้เลยครับ jeep@ING นี่น้องอ้อมหรือเปล่า



จาก เล็ก  125.24.0.183  พุธ, 15/2/2549 เวลา : 14:55


คำตอบที่ 25




จาก Jeep@ING  203.155.95.73  พฤหัสบดี, 16/2/2549 เวลา : 09:09


คำตอบที่ 26
       กล้บบ้านถามแฟนพี่ก็รู้เองแหละ



จาก Jeep@ING  203.155.95.73  พฤหัสบดี, 16/2/2549 เวลา : 13:28


คำตอบที่ 27
       ผลการทดสอบอัตราการกินแก๊ส LPG ของเครื่อง V6 3500 ระบบหัวฉีด
วิ่งระยะ 320 กม. วิ่งไปจันทรบุรี ใช้แก๊สไปทั้งสิ้น 51.8 ลิตร

สภาพการวิ่ง ความเร็วอยู่ระหว่าง 100-120 บางครั้งเกินไป 130 เป็นสภาพการวิ่งนอกเมืองประมาณ 85-90% และมีรถติดบ้างประมาณ 10-15%

สรุปอัตราการกินแก๊สเฉลี่ยอยู่ที่ 6.3 กม/สิตร เทียบกับการใช้น้ำมันอยู่ที่ 7.5 กม/ลิตร



จาก เล็ก  125.24.6.26  อาทิตย์, 26/2/2549 เวลา : 16:27
